Applinx

Quantum Shieldz Applinx

A quantum random number, a key component necessary for building a quantum fusion security system, in various forms such as USB, PCI, and Server

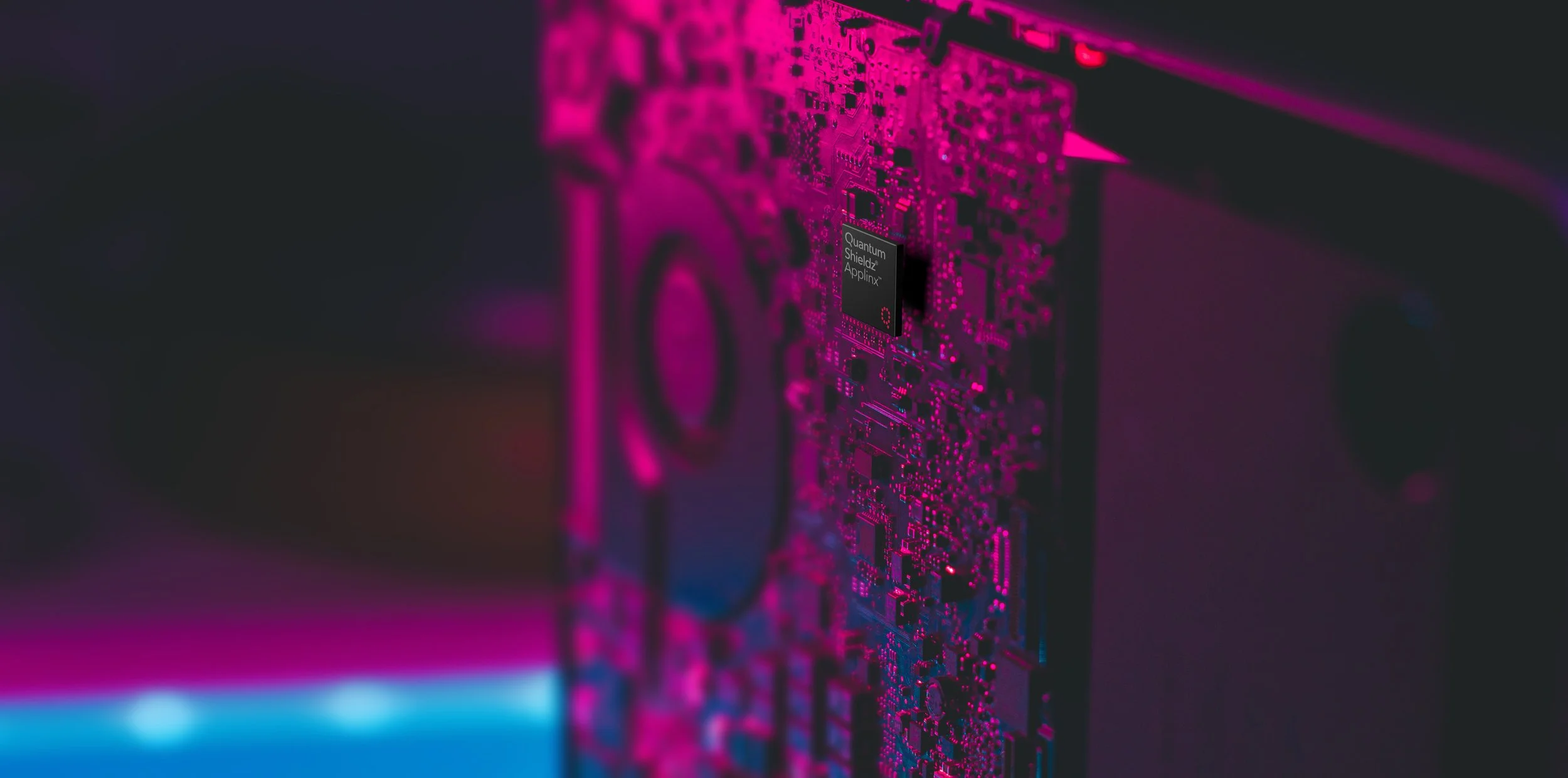

Close-up of a black circuit board with gold connectors and components, featuring the text "Quantum Shieldz Nanovers" in a red rectangle.
Contact

A random number generator (RNG) is an essential component of many cryptographic system applications, including encryption, authentication, and digital signatures, and is used to securely protect all internet communications and digital data. The level of protection in a security system is directly related to the entropy strength of the RNG. Quantum Random Number Generators (QRNG) from EYL significantly enhance the security strength of security systems at a very economical price. Additionally, we can provide a diverse QRNG product portfolio that supports various form factors, operating speeds, and interfaces to meet the needs of customers.

Applinx™ AUG11

USB type QRNG 1Gbps

Applinx™ AUG11 is a USB-type Quantum Random Number Generator (QRNG) product that provides 1G bits of random numbers per second.

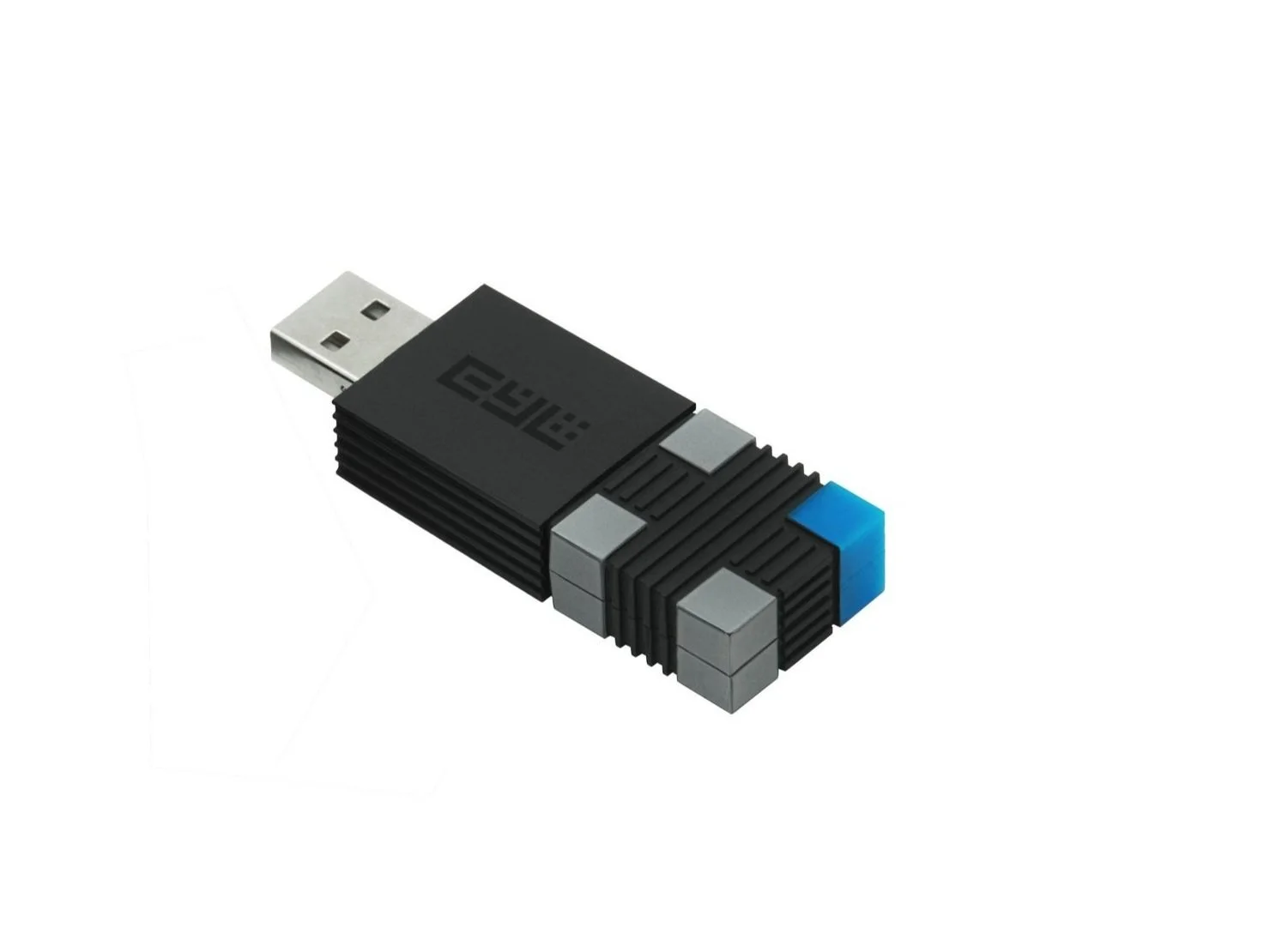

Rubik's Cube-inspired USB flash drive with black, gray, and blue detailing.

  • • High-speed quantum random number generation

    • Convenient Plug & Play interface

    • Random number generation technology that meets FIPS 140-2 criteria

    (NIST SP800-22/800-90B, BSI AIS31 Pass)

  • • Speed : 1.0 Gbps

    • Operating Temperature : -20℃ to +85℃

    • Voltage : 5 Volts

    • Current : 125 mAmps

    • Size (L x W x H) : 65 x 23 x 10(mm)

  • • All security systems requiring RNG (USB-A interface)

Applinx™ AUM11

USB type QRNG 1Mbps

Applinx™ AUM11 is a USB-type Quantum Random Number Generator (QRNG) product that provides 1M bits of random numbers per second.

Black and gray pixelated USB flash drive with blue tip on white background.

  • • High-speed quantum random number generation

    • Convenient Plug & Play interface

    • Random number generation technology that meets FIPS 140-2 criteria

    (NIST SP800-22/800-90B, BSI AIS31 Pass)

  • • Speed : 1.0 Mbps

    • Operating Temperature : -20℃ to +85℃

    • Voltage : 5 Volts

    • Current : 60 mAmps

    • Size (L x W x H) : 44 x 23 x 10 (mm)

  • • All security systems requiring RNG (USB-A interface)

Applinx™ APG41

PCI-Express type QRNG 4Gbps

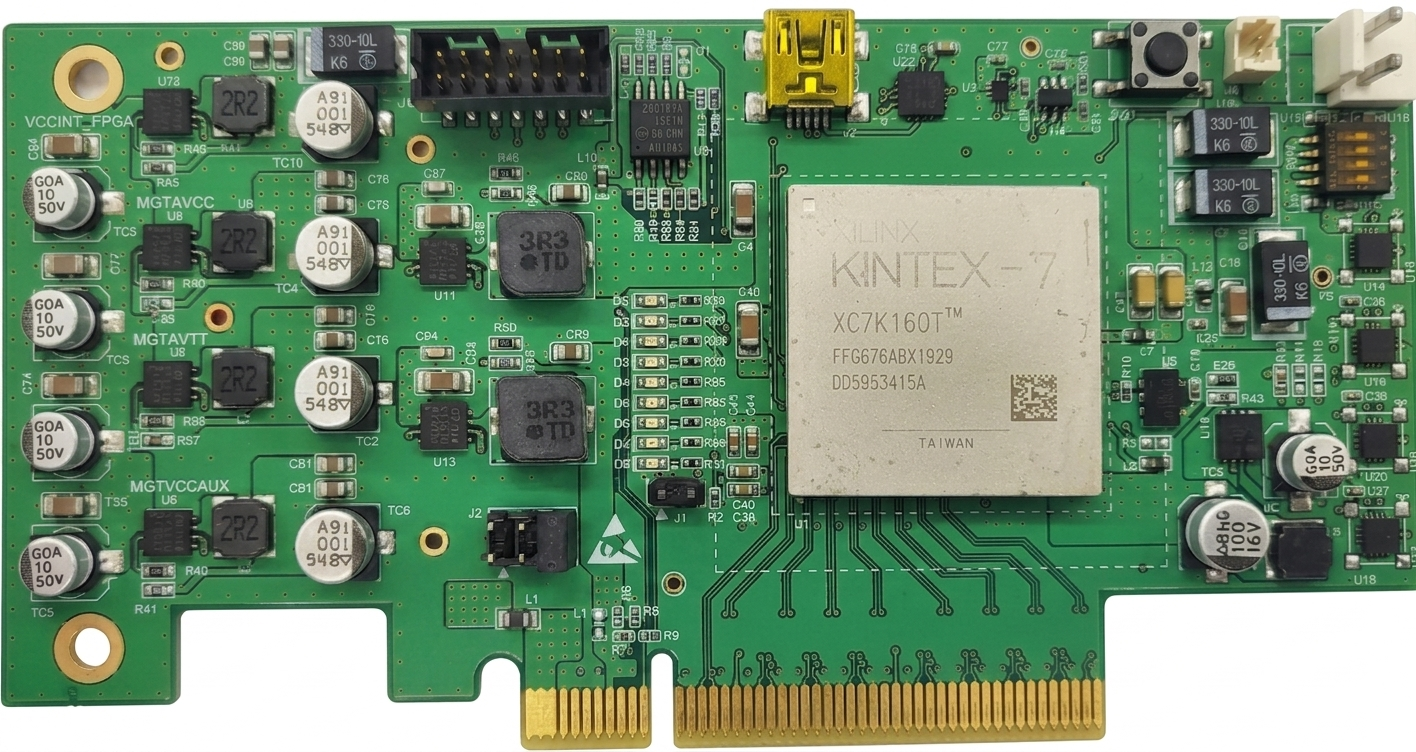

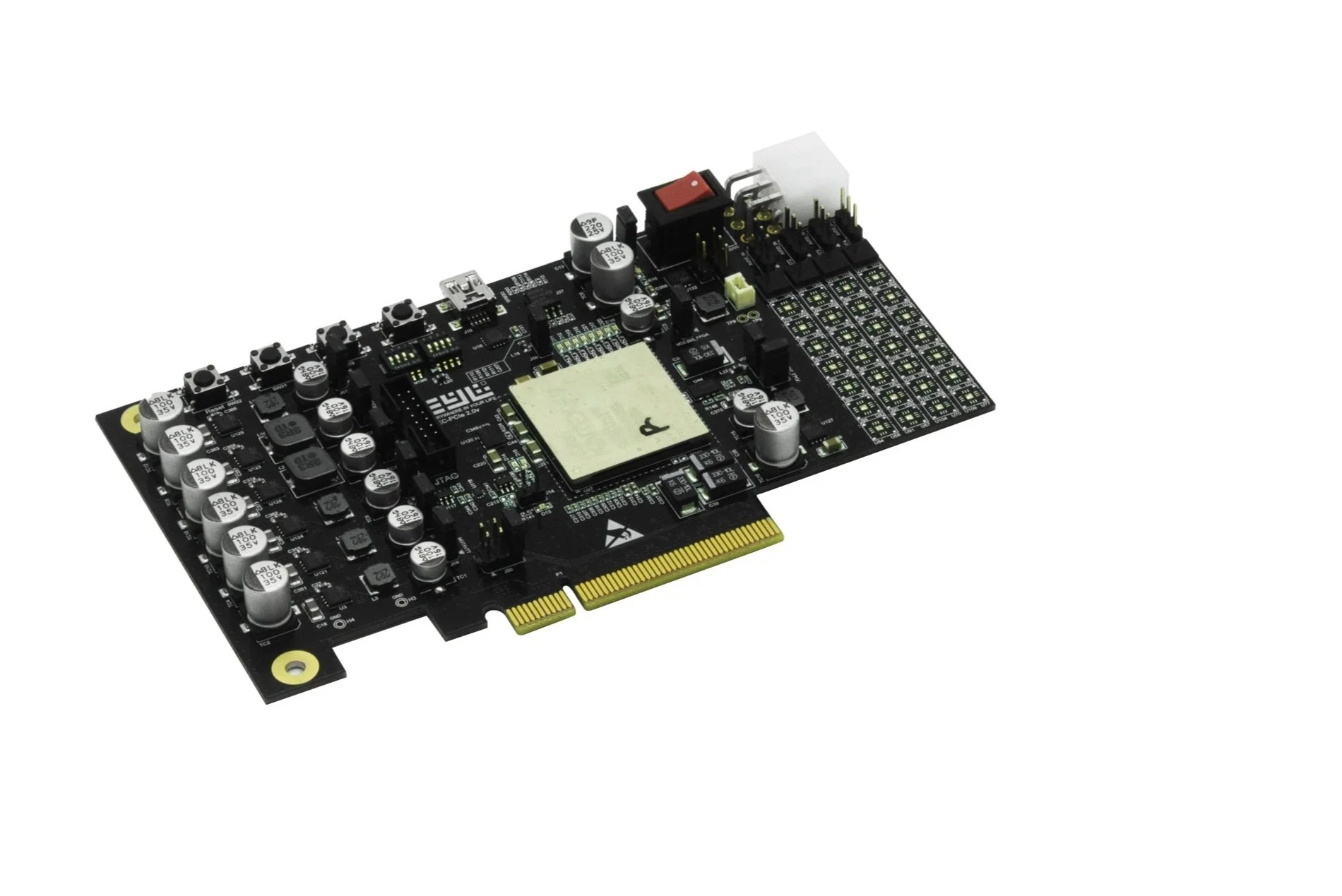

Applinx™ APG41 is a PCI-type Quantum Random Number Generator (QRNG) product that provides 4G bits of random numbers per second.

  • • Provides high-speed quantum random numbers at 4G bps

    • PCI-Express type ultra-high-speed Quantum Random Number Generator (QRNG)

  • • Speed : 4.0 Gbps

    • Operating Temperature : -20℃ to +85℃

    • Voltage : 5 Volts

    • Size (L x W) : 145 x 65 (mm)

  • • Equipment for Quantum Cryptographic Communication (QKD, VPN devices, etc.)

Applinx™ ASG41

Server type QRNG 4Gbps

Applinx™ ASG41 is a Server-type Quantum Random Number Generator (QRNG) product that provides 4G bits of random numbers per second.

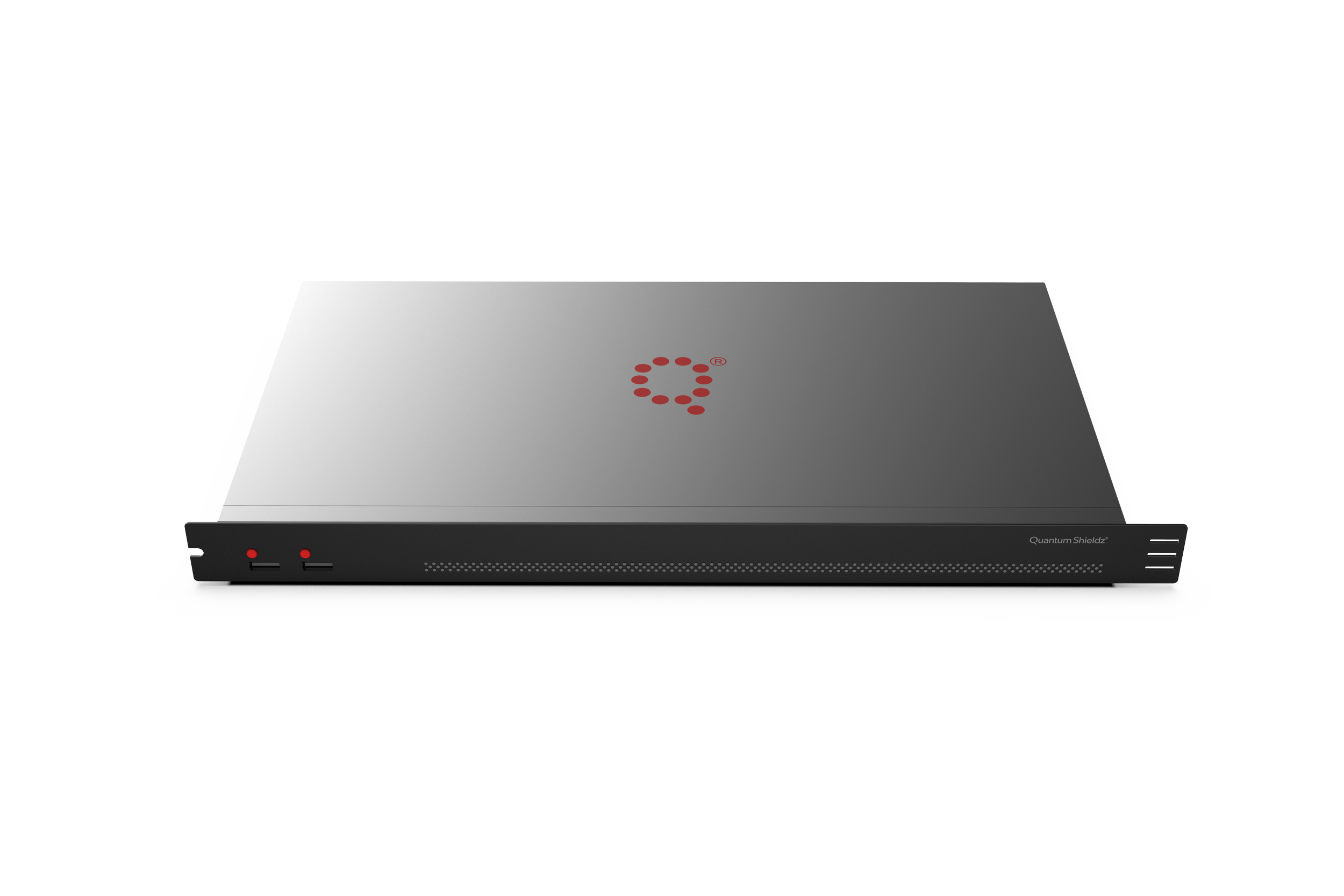

Quantum Shieldz server with black casing and red logo on top

  • • Provides high-speed quantum random numbers at 4G bps

    • Offers separate cryptographic systems

    • Quantum random number generation server capable of supplying entropy or random numbers to large systems like IDC

    • Includes PCI-Express type Quantum Random Number Generator with cryptographic module

  • • Speed : 4.0 Gbps

  • • Large-scale security systems (IDC, server rooms, etc.)

Applinx™ AHG41

QRNG for QKD system 4Gbps

Applinx™ ASG41 is a used small Quantum Cryptographic Communication equipment (QKD) and provides 4G bits of random numbers per second.

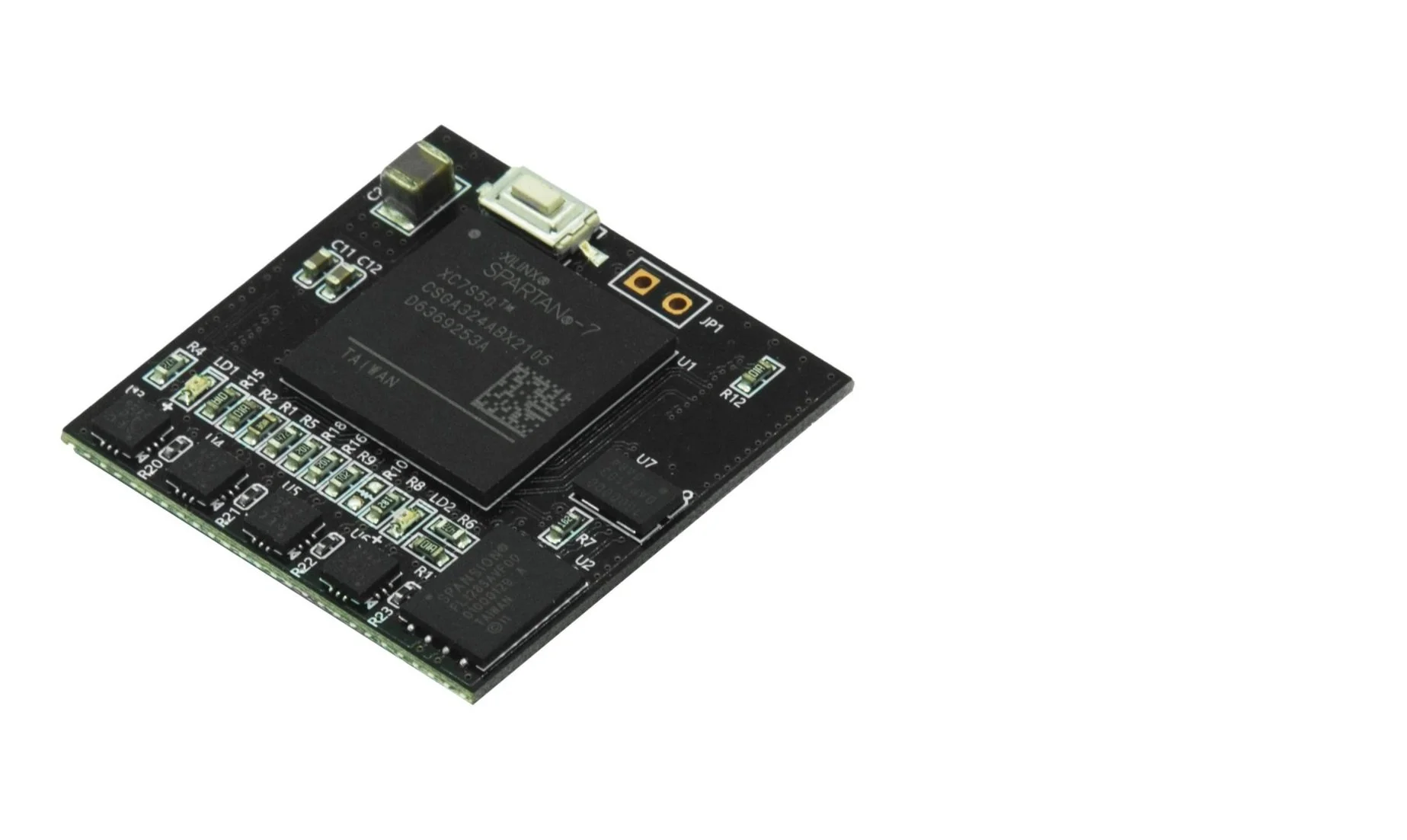

Xilinx Spartan-7 FPGA module with black circuit board, small components, and QR code.

  • • Provides high-speed quantum random numbers at 4G bps

    • Module for small-scale Quantum Cryptographic Communication equipment

  • • Speed : 4.0 Gbps

    • Operating Temperature : 0℃ to +85℃

    • Voltage : 1.8 Volts

    • Size (L x W) : 30 x 30 (mm)

  • • small Quantum Cryptographic Communication equipment (QKD)
